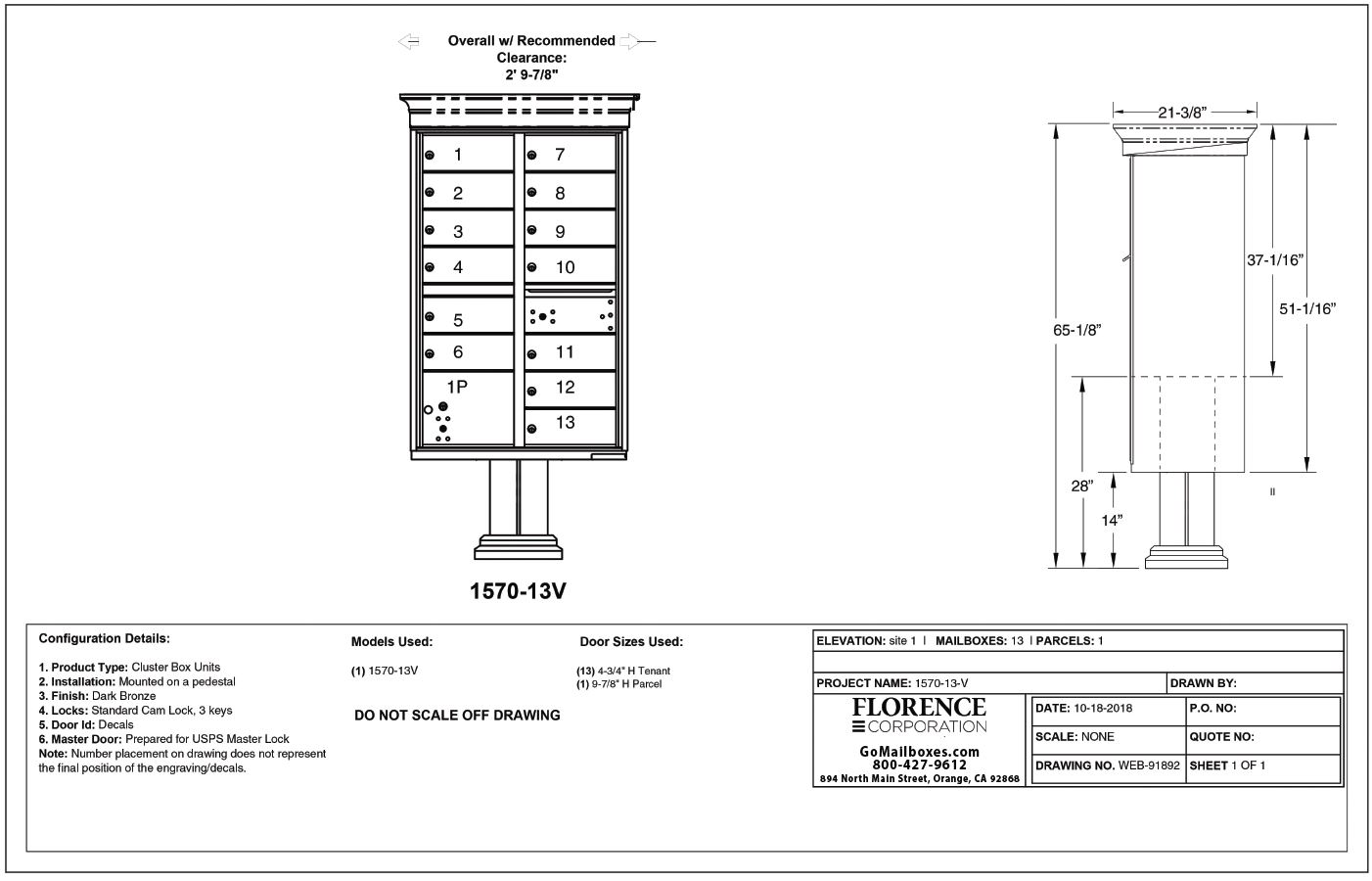

|Item||Height (inches)||Width (inches)||Depth (inches)|
Compartment Doors Chart
|Quantity||Compartment Name||Compartment Type||Compartment Height||Compartment Width||Compartment Depth|
|13||4-3/4″ Tenant||Standard Mail||4-3/4″||12″||15″|
|1||9-7/8″ Parcel||Parcel Locker||9-7/8″||12″||15″|
|1||Master Collection||Outgoing Mail||6-1/2″||12″||15″|
Finish or Material
Loading & Mounting
Front loading, pedestal mounted CBU mailbox includes a carrier access door prepared for a USPS arrow lock (installed by local postal officials) for delivery/service to mailbox.
Tenant doors include heavy duty cam locks, each with three (3) keys.
Includes Parcel locker door(s) – a means of USPS package delivery. Dual, captive locking system allows USPS to deliver a package to the locker leaving the key in the tenant’s mailbox. Package is retrieved by the tenant and key is retained securely in the lock for the Postal Service to retrieve and reuse for the next package delivery.
Outgoing mail compartment with slot, anti-fish comb for security, and protective hood is located above USPS access door for convenient outgoing mail collection.
